Pro Series UC 30 in. Hidden Controls Range Hood

AN-1244

Stand out from the common kitchen and insert timeless design and function into your home with the Ancona Pro Series UC Hidden Controls 30 Inch range hood. Displaying a smooth structure of high quality 430 stainless steel, its hidden controls allow you to modify settings to optimal preference, while maintaining an ergonomically sophisticated design. With a powerful 850 CFM ventilation system, the Pro Series UC Hidden Controls range hood relentlessly eliminates grease, odors, smoke and steam from any cooking area.  The removable easy-to-clean slanted stainless steel baffle filters provide durability and redirect grease and moisture to hidden grease traps. An impeccable merge between engineering and design, the Pro Series UC Hidden Controls range hood is the fundamental asset to transform your kitchen into the ultimate gastronomic haven.

  • 30 in. wide under cabinet pro-style shape
  • High grade 430 stainless steel
  • 850 CFM
  • Top venting – Round 10 inches

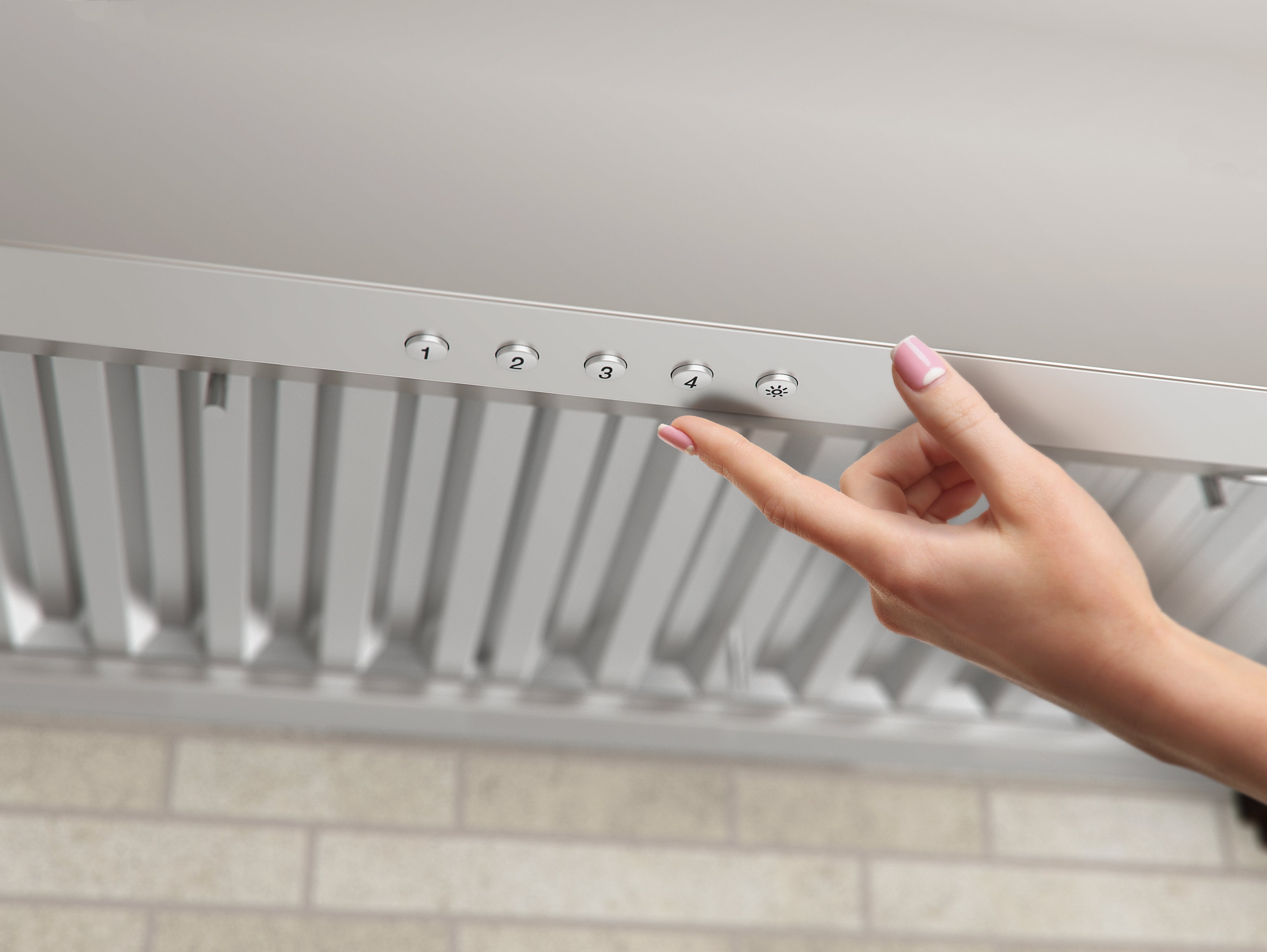

  • 4-speed Electronic controls
  • LED lights
  • Stainless steel baffle filters
  • Grease tray
  • 120V/60Hz
  • cETLus

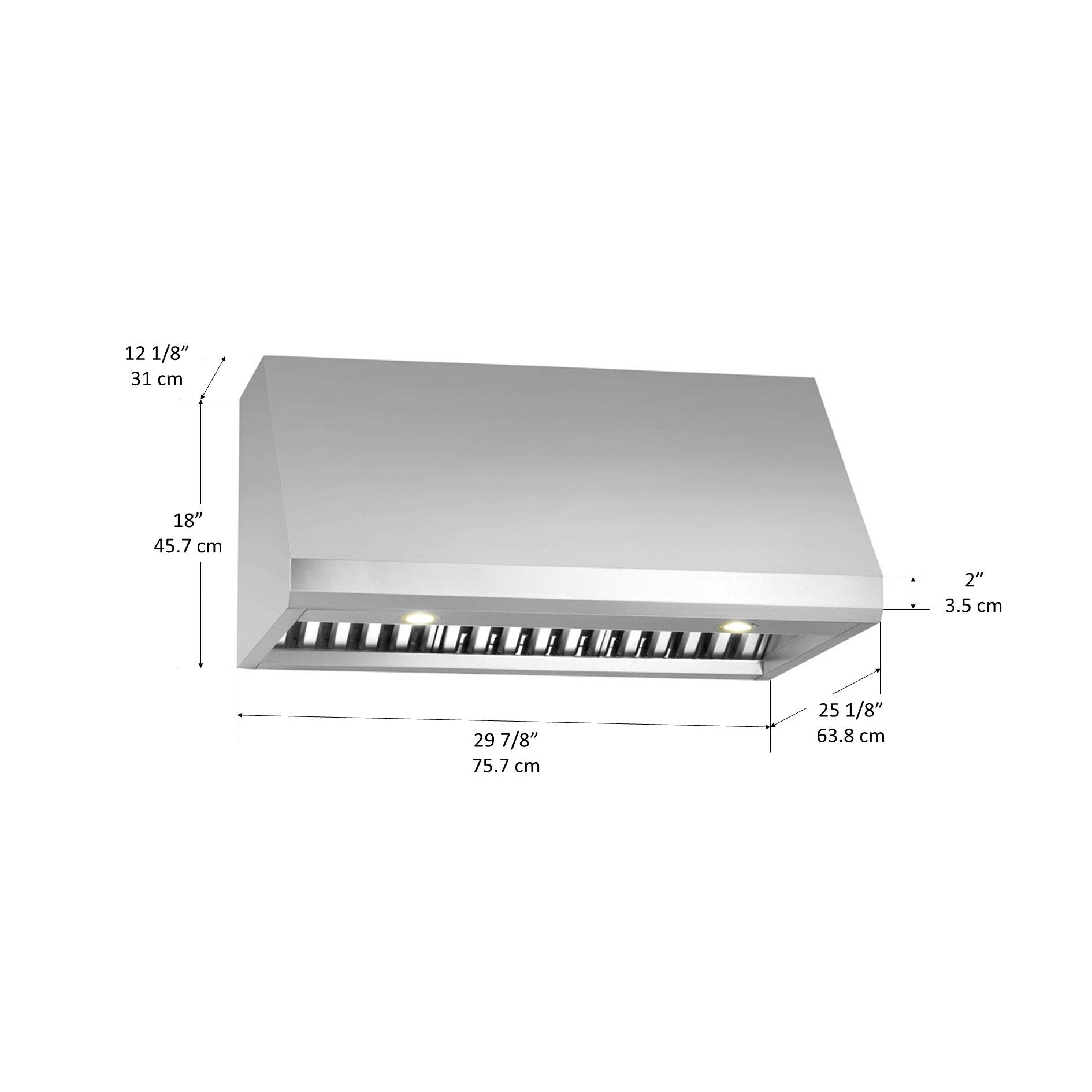

Dimensions

  • Width 29 7/8” (757 mm) x Depth 25 1/8” (638 mm) x Height 18 1/8” (460 mm)
  • Please note: this range hood is 18” (46 cm) high:
  • For electric cook top you need minimum 34” clearance distance between bottom of kitchen cabinet and cook top. For gas cook top you need minimum 40” clearance.
  • See diagram for more detailed dimensions
  • Net weight: 66.8 lbs (30.3 kg)
Manual & Dimensions
Product Manual: View
Dimensions: View
