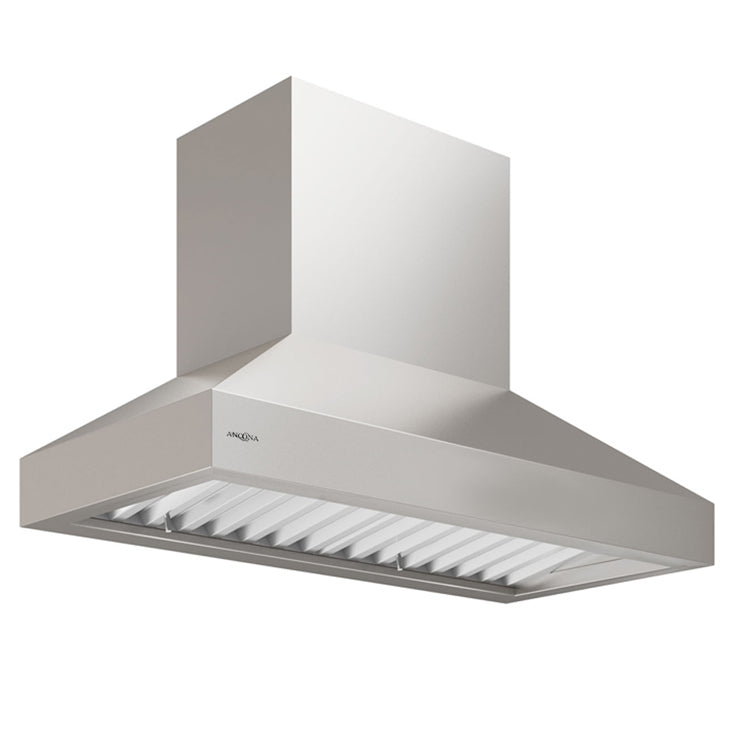

Pro Series Pyramid 36 in. Hidden controls Range Hood

AN-1140

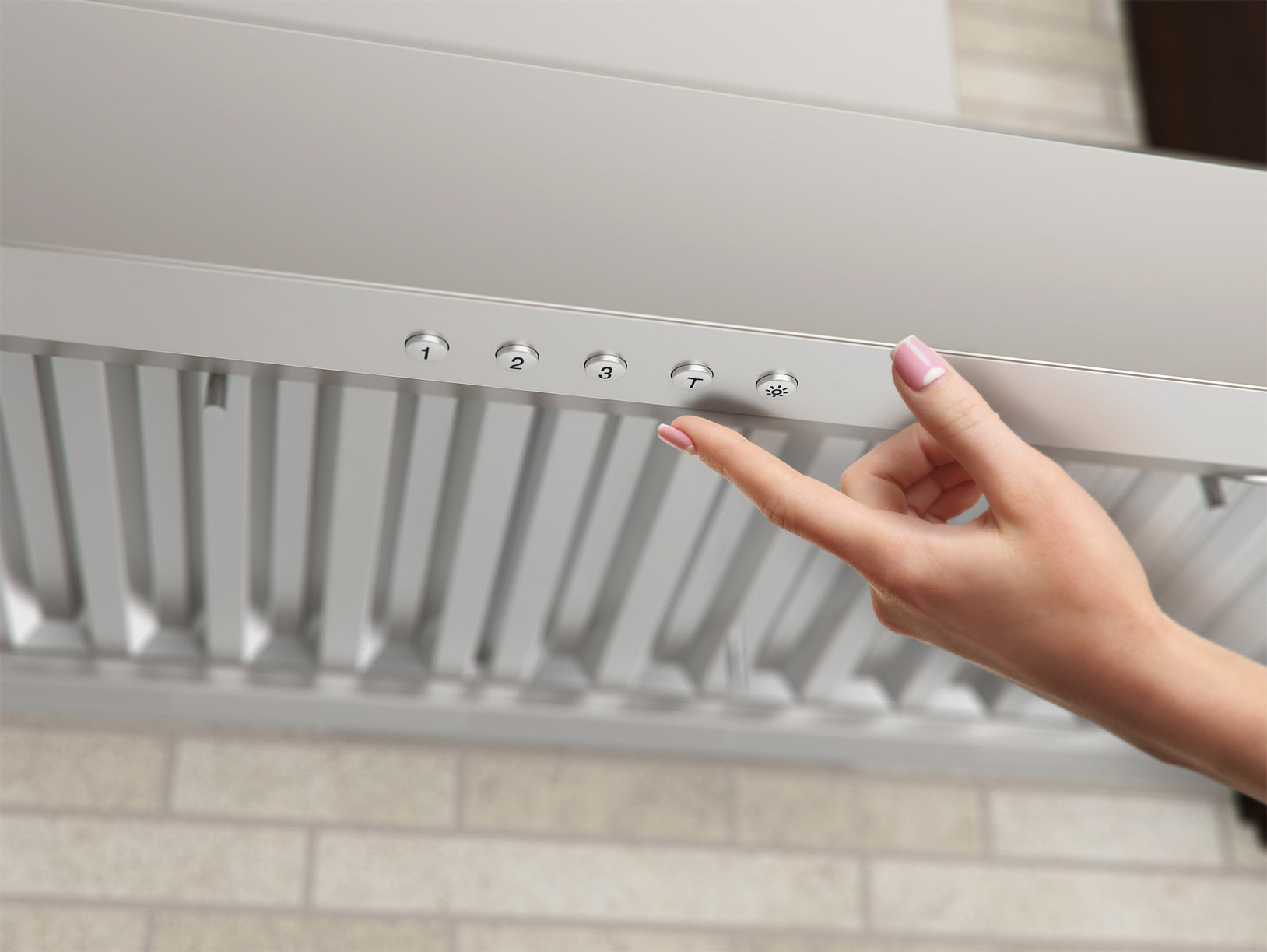

Make a statement and turn your kitchen into the portrayal of sophistication with the Ancona Pro Series Pyramid Hidden Controls 36 in. range hood. Its hidden control panel provides a sublime and elegant design, allowing you to navigate through various functions without compromising the appearance of your kitchen. The Pro Series Pyramid Hidden Controls range hood quietly removes any grease, odor or smoke with ease, enhancing the cooking experience for any culinary enthusiast. With its bold professional design, scientific performance and easy to clean slanted filters, this range hood is guaranteed to transform your kitchen from ordinary to breathtaking!

  • Wall-mounted classic pyramid pro-style shape
  • High grade 430 stainless steel
  • 36” – 775 CFM
  • Top venting – Round 7 inches
  • 4-speed Electronic controls
  • LED lights
  • Stainless steel baffle filters
  • Grease tray
  • 120V/60Hz, 1.2A
  • cETLus



Dimensions

  • Fits standard ceilings up to 2.7 m (9 ft.) ceilings if installed at 30” above the cooking surface.
  • Width: 35 3/8” (900 mm) x Depth: 20 1/4” (515 mm) x Height: 9 5/8” (245 mm) – excluding chimney; maximum height of range hood including chimney:  47 3/8” (1205 mm)

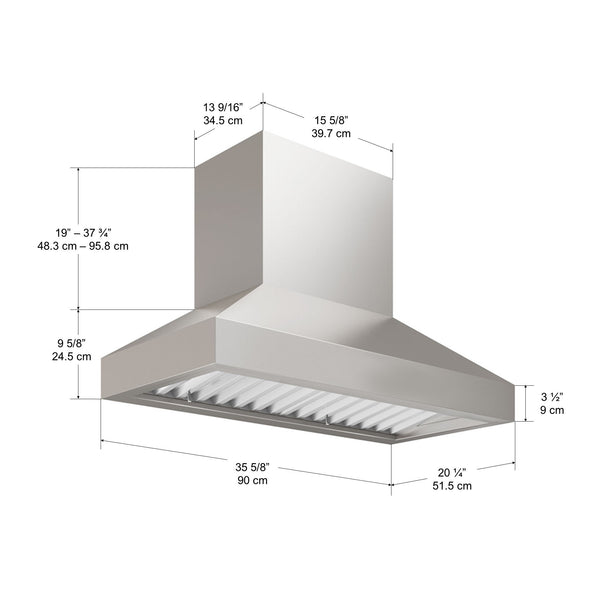

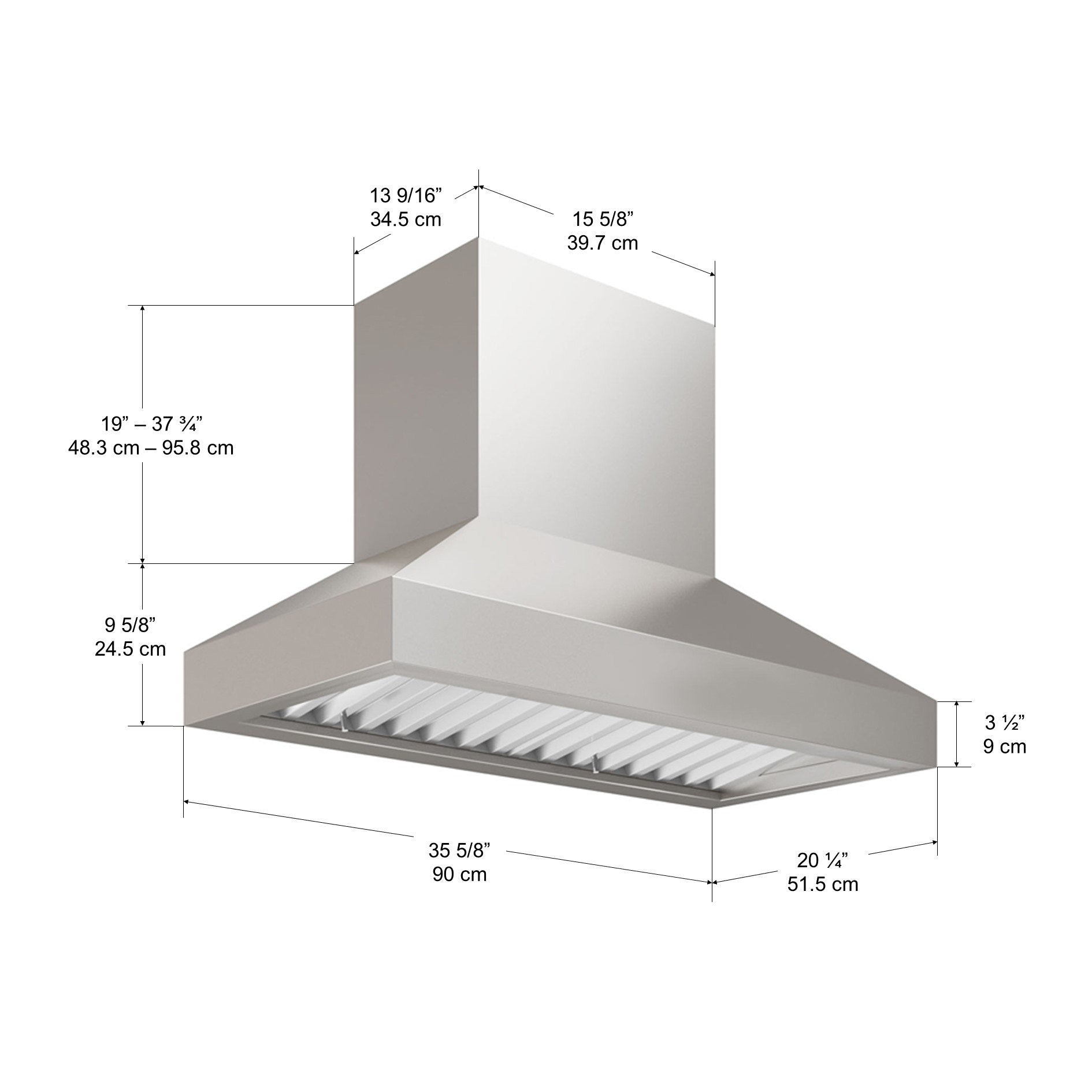

  • See diagram for more detailed dimensions
  • Net weight: 66.1 lbs (30 kg)
Manual & Dimensions
Product Manual: View
Dimensions: View
