Reliable and ravishing, Ancona’s Capri Series undermount double bowl sink, is guaranteed to turn your kitchen from normal to stunning.  This undermount double sink features ample twin 14 inch bowls, perfect for distributing all household cleaning chores. Adjustable to most counters and cabinets, the rear drain provides more valuable space below the sink. Built in stainless steel, its satin finish and delicate curves fusions into any kitchen setup, resulting into a refined harmony to your home.

Features :

• Satin-finished square-shape bowl
• 9 in. (229 mm) deep single bowl (faucet not included)
• 304 Stainless steel
• 18 gauge (1.2 mm) thickness
• Rear-drain position to give you more basin space as well as more under-cabinet storage
• QuietGuard™ - for superior noise absorption
• Two elegant European-style stainless steel strainers with removable baskets included
• Includes cut-out template to facilitate installation
• Mounting brackets included
• CUPC listed
• Drain pipe & adapter piece not included as pipe diameters vary
• 50/50 sink

Specifications :

• Minimum cabinet width required for installation: 91.44 cm (36 in.)

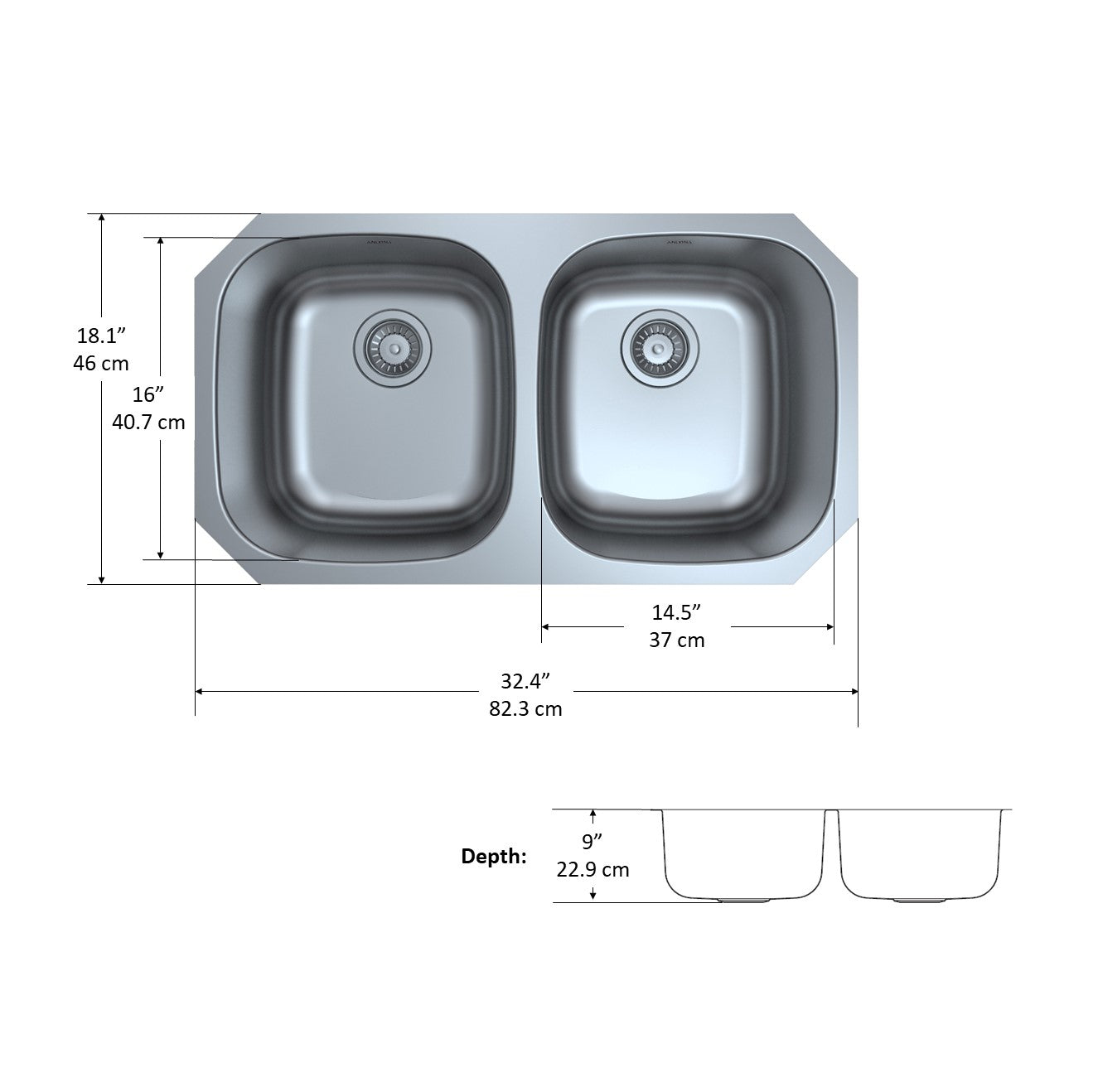

• Outer dimensions (L x W x H):
   823 mm x 460 mm x 229 mm (32.4 in. x 18.1 in. x 9 in.)
• Bowl dimensions (L x W x H):
  407 mm x 370 mm x 229 mm (16 in. x 14.5 in. x 9 in.)

• Weight: 6.05 kg (13.3 lb.)

Download DXF cut-out
